Foundation Reactions and Anchorage
We provide project-specific foundation reaction and anchorage engineering for our clients in the modular building industry who require fast response as they commonly have fast time delivery as their selling point to their customers.
This service helps define how structural loads transfer to supports, foundations, and anchorage systems while supporting constructability, coordination, permit review, and installation planning under project-specific conditions.
Interested?
Role of Foundation Design and Anchorage
Foundation design and anchorage help confirm that structural loads can be transferred safely into the supporting foundation by evaluating support reactions, anchor forces, and base connection behavior.

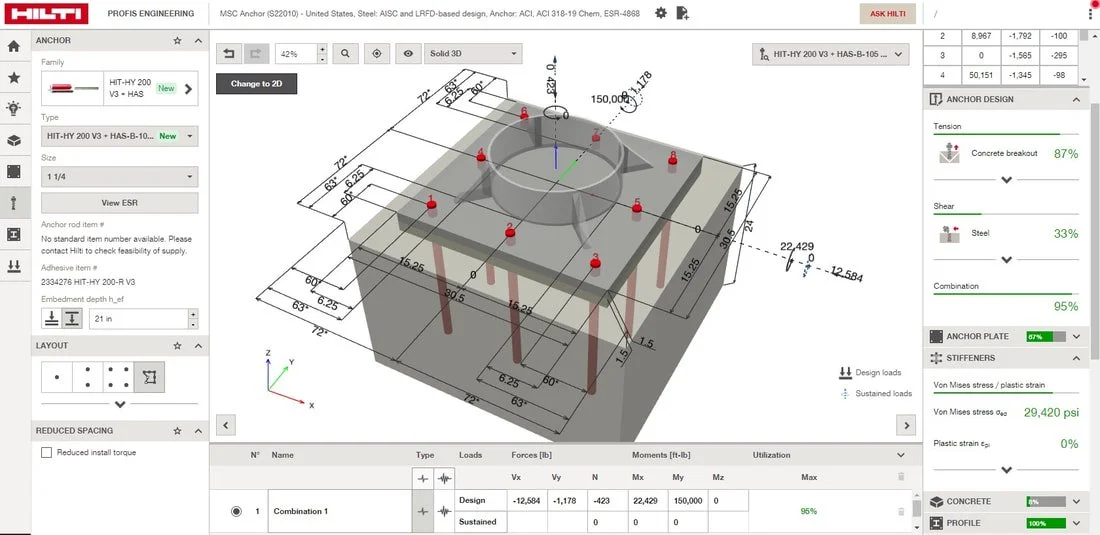

Anchor plate design model showing anchor layout, applied loads, utilization, and steel-to-concrete connection performance.

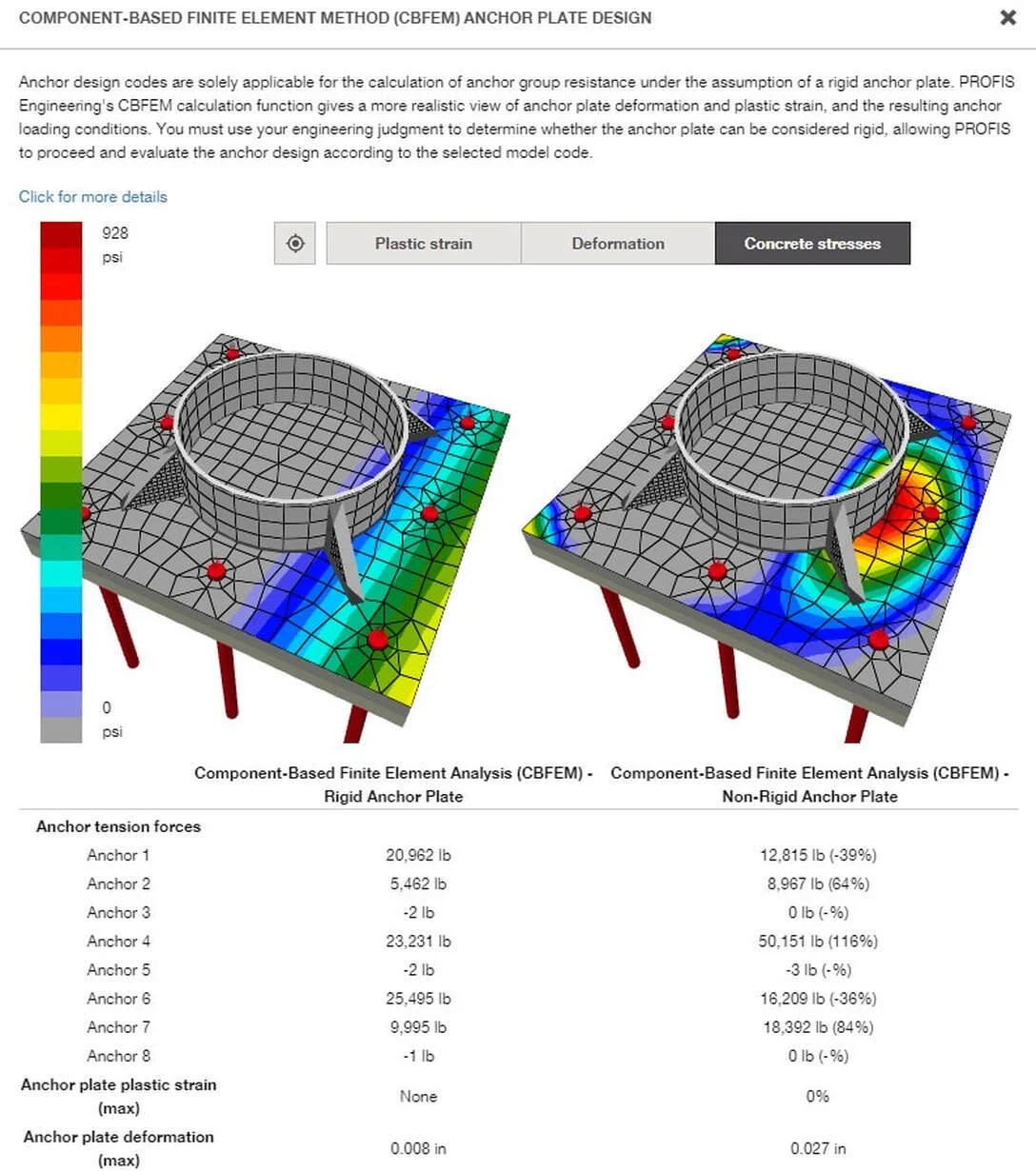

CBFEM comparison of rigid and non-rigid anchor plate behavior, illustrating how plate flexibility affects anchor forces and deformation.

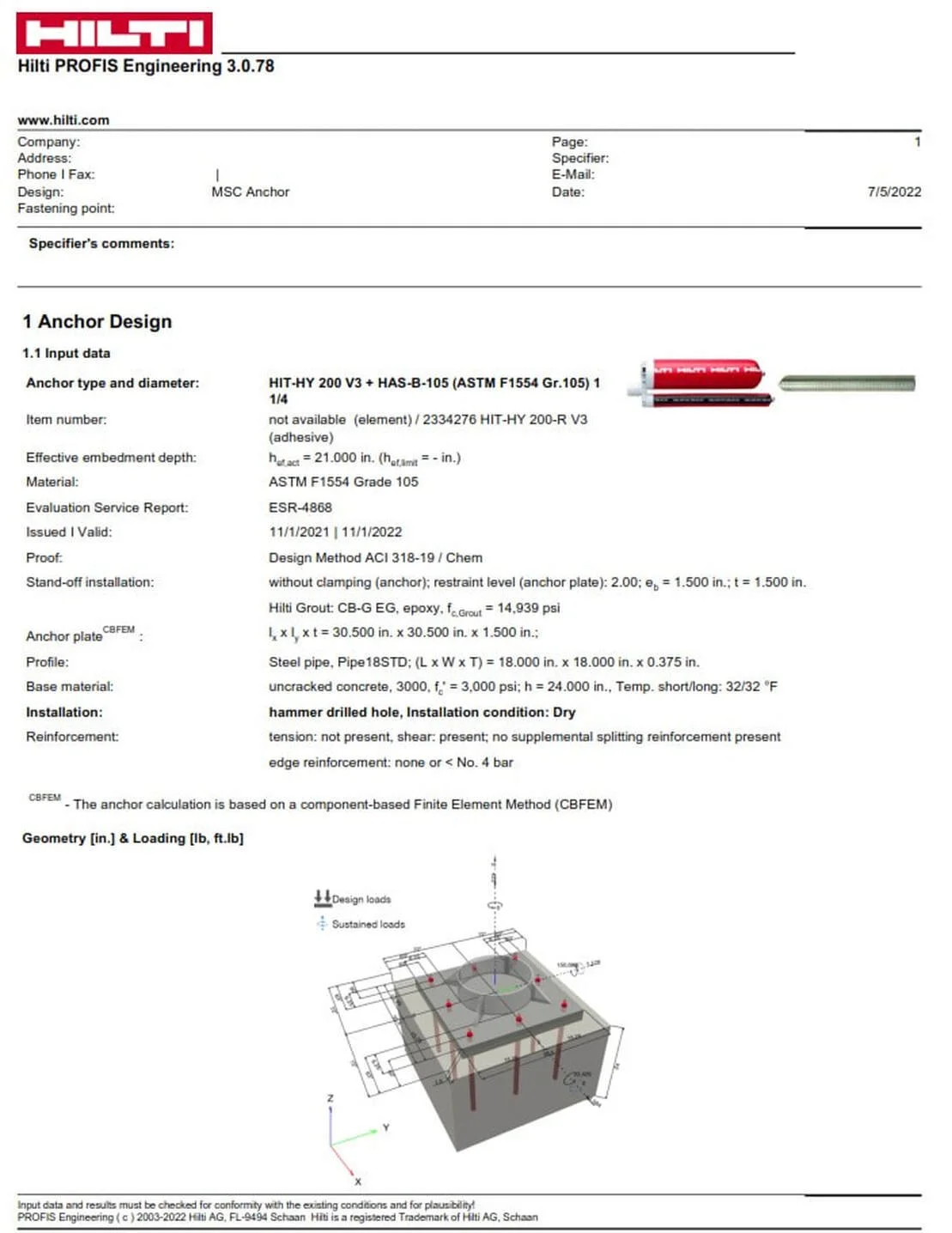

Hilti PROFIS anchor design report summarizing input data, anchor type, embedment depth, base material, and governing design parameters.

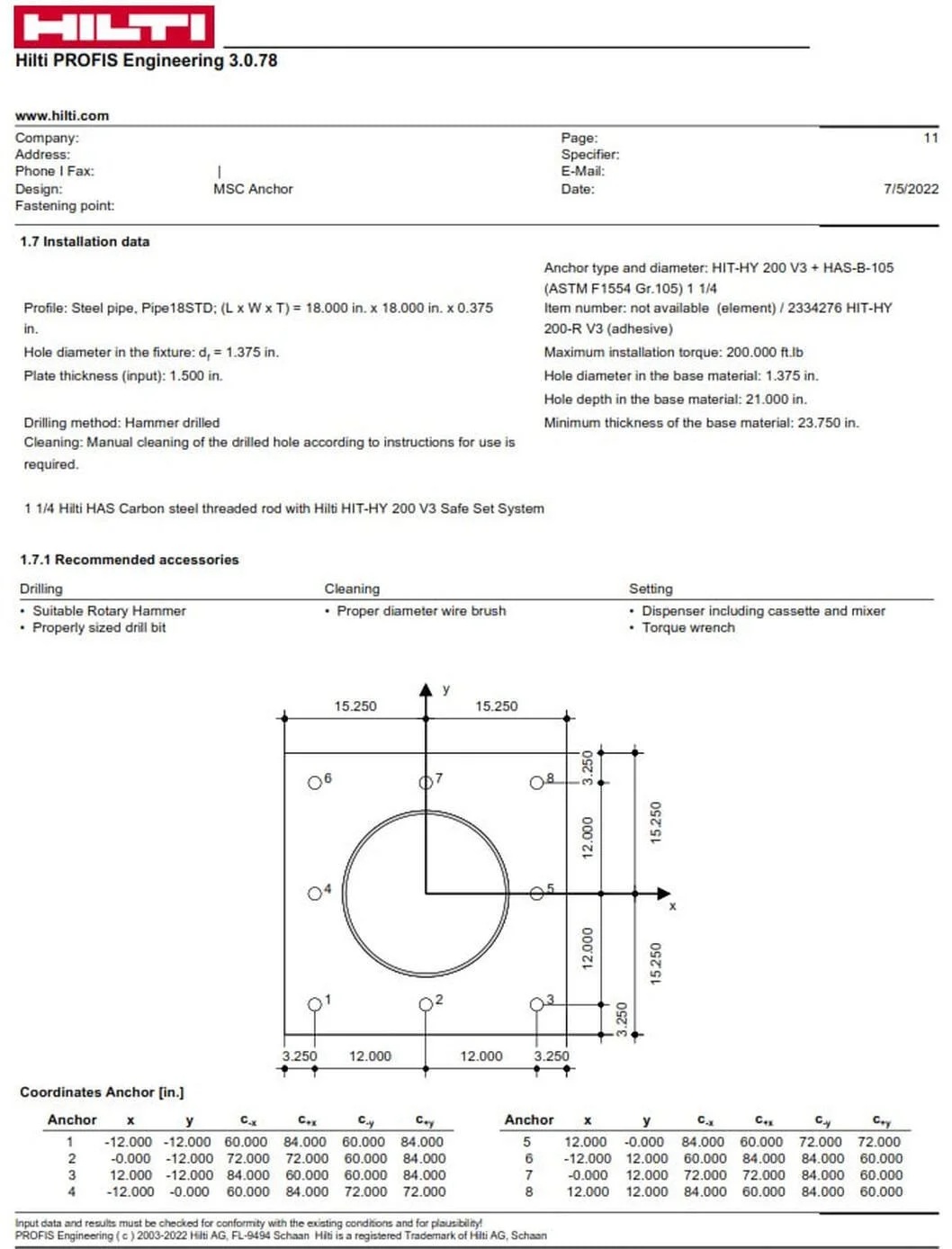

Anchor installation and layout drawing showing bolt spacing, edge distances, plate geometry, and recommended installation data.

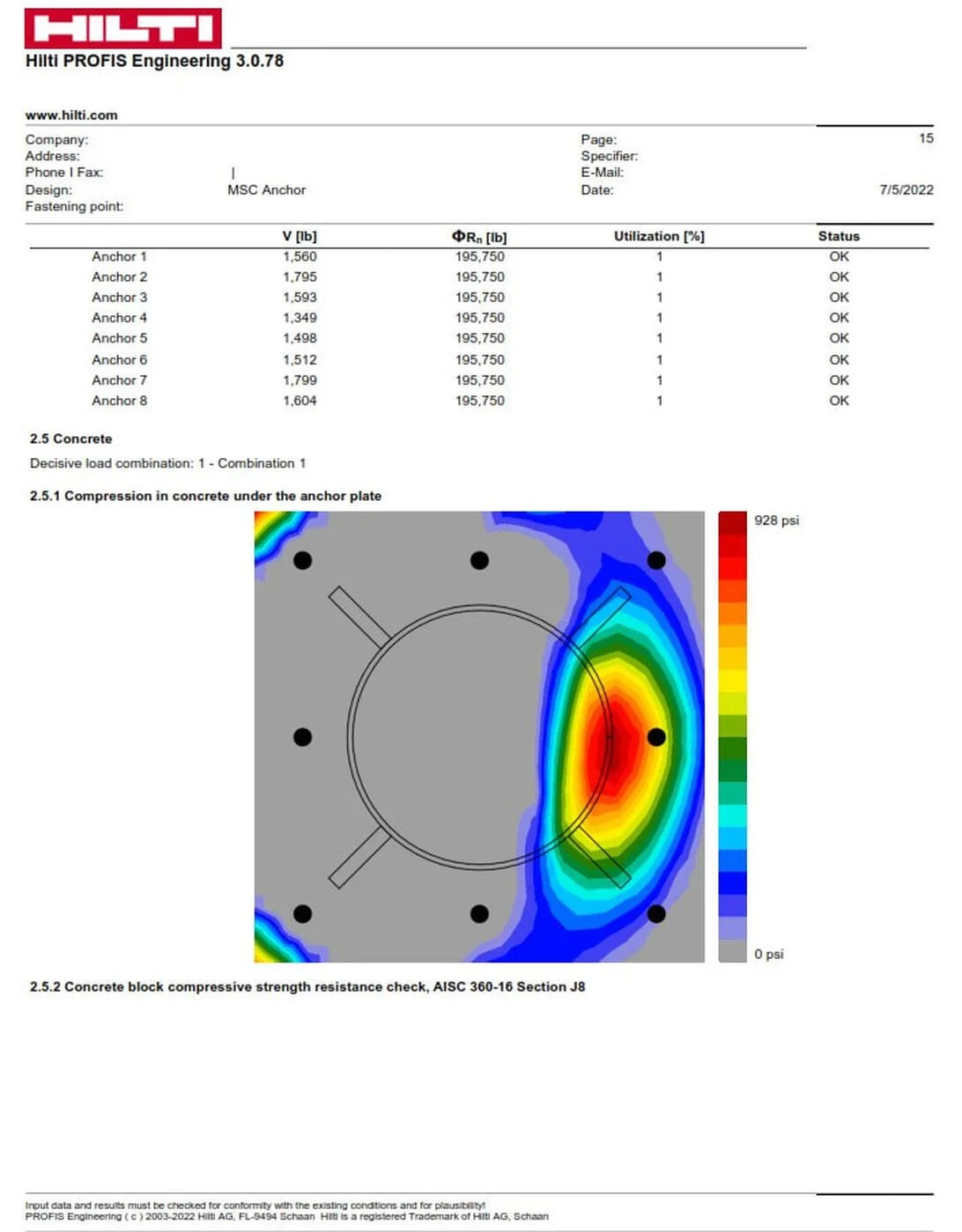

Concrete compression stress contour beneath the anchor plate, used to verify bearing response and anchorage load transfer into the foundation.

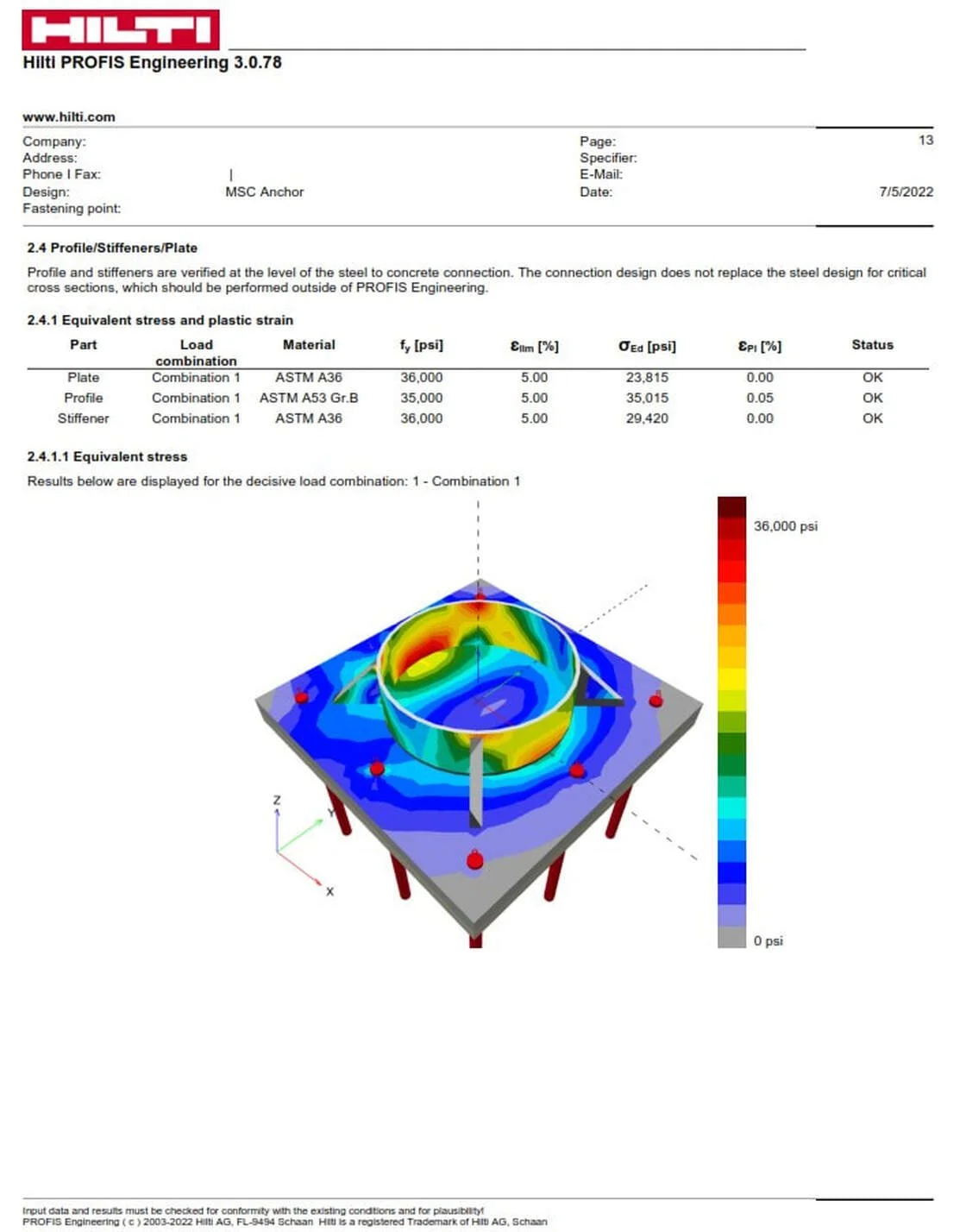

Equivalent stress plot for the anchor plate and stiffeners, confirming steel component performance under the governing load combination.
